HIGHLIGHTS IN MAGMAstress 5.5 - Prediction of core deformation

HIGHLIGHTS & BENEFITS OF MAGMA - Usability

 (c) MAGMA GmbH

HIGHLIGHTS

Prediction of core deformation as a function of

  • Mechanical behavior of different sand and binder systems

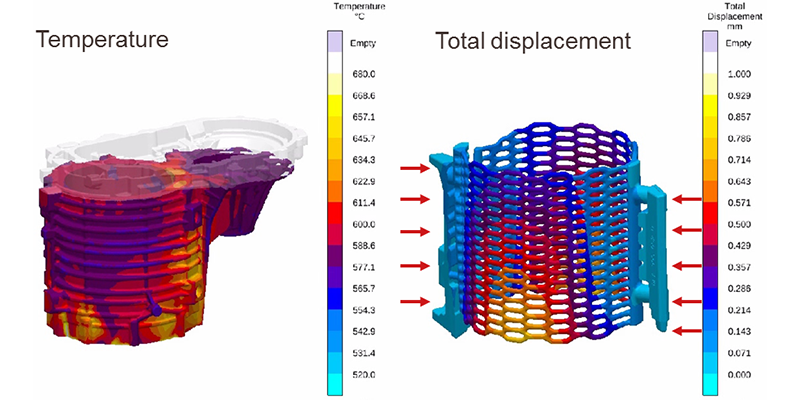

  • Thermal loading including buoyancy during filling and early stage solidification

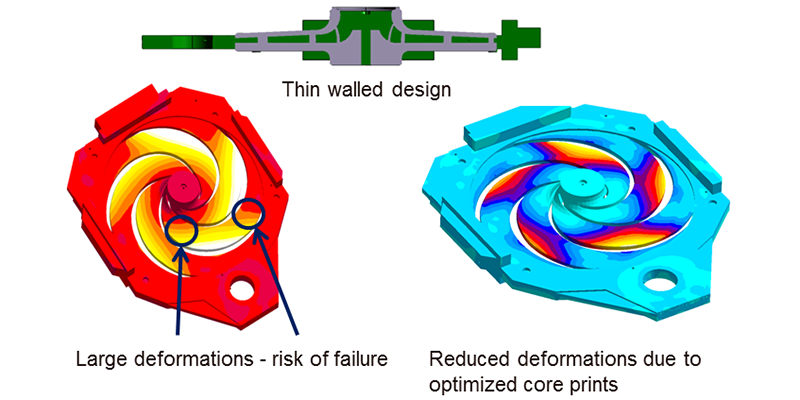

  • Consideration of core print layout and positioning
  • Pressure dependent description of the bonded porous sand material
  • Time and temperature dependent mechanical data

MAIN BENEFITS

MAGMAstress quantitatively predicts core stresses and distortion offering:

  • Increased safety by avoiding core failure during casting through quantitative prediction of core stresses
  • Effectivity by optimizing shrinkage factors for core pattern layout through calculation of local thermal expansion coefficients

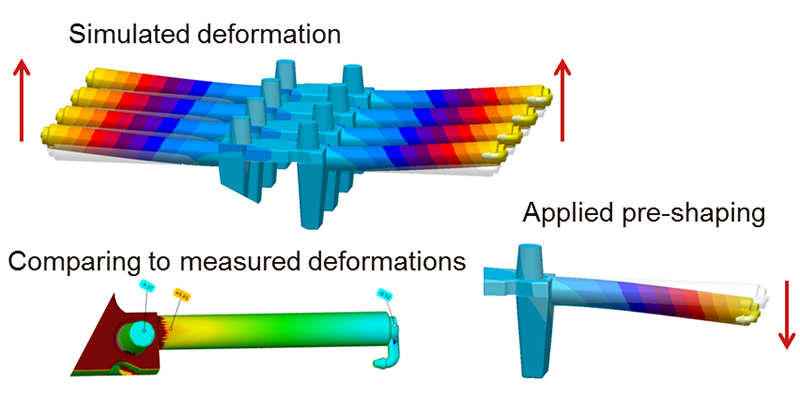

  • Robustness due to stabilized core production through pre-shaping of core print layouts
  • Availability by supporting major binder and sand systems
  • Cost savings by minimizing design loops, tool rework and lead times through systematic core print development

When downloading the PDF, please leave your contact data (you will receive the download link by e-mail) and thus agree to the processing and storage of it by MAGMA casting technology GmbH in Aachen. It will not be passed on to third parties. For further information how we process your personal data, please follow this link Privacy Policy.

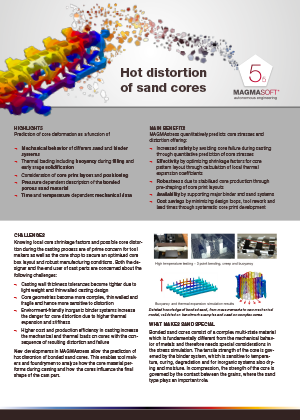

Download Fact Sheet

Última Publicação

MAGMASOFT® 6.0 – Tornando a simulação simples e fácil

MAGMASOFT® 6.0, a nova versão do conhecido software de simulação de processos de fundição, oferece agora uma experiência de uso fundamentalmente nova. Os usuários alcançam seus objetivos ainda mais rápido, graças ao foco especial colocado na facilidade de uso e no tempo de resposta.

Ir para a publicação

Requisitos do sistema

MAGMASOFT® está disponível para todos os sistemas operacionais atuais, tais como Linux e Windows 10. O MAGMASOFT® pode ser usado em computadores due core ou multiprocessados ou computadores no sistema cluster.

Total Displacement

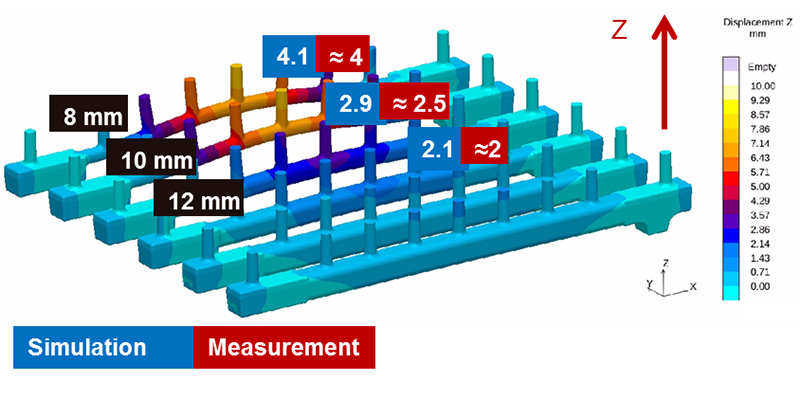

Displacement Z
